AI Preset Selection

AI Preset Selection is a system developed by EyeQ to apply different presets to photos of differing subject matter, lighting conditions, or content. Instead of applying a single preset to every image that you process - you can create a family of presets, each tuned for a specific scene. Starting in SDK 10.0.2, we have updated our AI Preset Selection model to be faster, more accurate, and much smaller - leading to substantially faster model loading times.

This AI Preset Detection is also useful to simply learn more about the photos your customers are sending to your business - we call this "Image Intelligence". There are two main parts to AI Preset Selection:

1. Scene Detection using AI to determine the content of the photo
2. Automatic Preset Selection based on our carefully chosen defaults, or using presets you have tuned and edited in Workbench

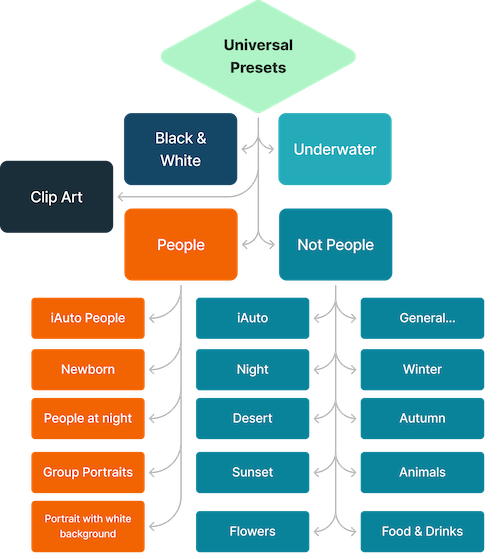

There are over 20 Scenes currently defined in the SDK, and these are visible in the latest version of Workbench. You may edit the presets for each of the scenes, then "Export Presets..." to create a .preset file, which you can use in the SDK or Command Line Application. We provide models and presets for for the AI Preset Detection groups below, requiring the files shown:

AI Preset Groups	Server SDK	Android SDK	iOS SDK
Univerasl	pro_and_universal_20211221.pnn skintone_20211221.pnn	sd_20211221_tflite.pnn skintone_20211221_tflite.pnn	sd_20211221_coreml.pnn skintone_20211221_coreml.pnn
Pro	pro_and_universal_20211221.pnn skintone_20211221.pnn	sd_20211221_tflite.pnn skintone_20211221_tflite.pnn	sd_20211221_coreml.pnn skintone_20211221_coreml.pnn
School and Sports	school_and_sports_5000200.pnn skintone_5000200.pnn	sd_5000200_tflite.pnn skintone_5000200_tflite.pnn	sd_5000200_coreml.pnn skintone_5000200_coreml.pnn

These AI Preset Groups can be exported from Perfectly Clear Workbench and loading them in the SDK, CLI or Docker solution will require both the presets and the .pnn model files provided in your SDK package. We can help tune these presets for you, also.

EyeQ can create Custom Scenes designed for your business. Read more here

Note: Scene Detection is an optional component to our SDK. Contact your SDK account executive for pricing and availability.

Using AI Preset Selection

There are three main ways to use this AI Preset Selection component, from the most simple, to the most advanced:

1. The Command Line Application and Container solutions includes support for AI Preset Selection

If your business opts-in for Scene Detection support, then this module will be enabled by default. See the documentation for the command line application or container solution for details.

2. Using AutoCorrect

This is the simplest way to enable Scene Detection using the Perfectly Clear SDK. The only additional step that is required is to simply create a PFCENGINE and then load the detection model. Once this is done, include the PFCENGINE when calling PFC_AutoCorrect.

Load the AI Engine:

    // Use AI-enabled PFCENGINE to do scene detection and apply a scene preset accordingly.
    // IMPORTANT: initialization of AI engine takes time, so better keep a SINGLE INSTANCE of the AI-enabled
    // engine per worker thread throughout your app session.

    start = duration_cast< milliseconds >(system_clock::now().time_since_epoch());

    PFCENGINE *pAiEngine = PFC_CreateEngine();

    // Load AI engine (assuming all dlls and models are in exe folder):
    std::string exePath = std::string(argv[0]);
    std::string binPath = exePath.substr(0, exePath.find_last_of('/')).c_str();
    int aistatus  = PFC_LoadAIEngine(pAiEngine, AI_SCENE_DETECTION | AI_CORRECTIONS | AI_COLOR | AI_FACEMESH, binPath.c_str());

Optionally, load custom Presets for the Scenes you will be detecting:

    // AI Scene Detection includes default presets for all scenes it defines.
    // These presets are immediately available after the call to PFC_LoadAIEngine().
    // One can return to these presets calling with a null pointer like
    //
    // <code>
    // int retLoadPresets = PFC_LoadScenePresets(pAiEngine, nullptr);
    // <code>
    // You may modify these presets by editing them in Workbench, then exporting
    // a Scene Detection compatible .preset file then load those presets
    // with the following code.
    if (profilename == NULL)
    {
        if (bVerbose) {
            printf("Using default presets for detected scenes\n");
        }
    } else {
        int retLoadPresets = PFC_LoadScenePresets(pAiEngine, profilename);
        if (0 != retLoadPresets) {
            printf("Cannot load scene presets file '%s' error '%i'\n", profilename, retLoadPresets);
            exit(1);
        } else {
            printf("Loaded scene presets file '%s'\n", profilename);
        }
    }

    stop = duration_cast< milliseconds >(system_clock::now().time_since_epoch());
    if (bVerbose) {
        printf("AI Engine loaded in %f ms\n", (double)(stop.count() - start.count()));
    }

Call AutoCorrect to process image with the AI selected preset:

    // AutoCorrect with a valid AiEngine will ignore PFCPARAM and use AI determined presets instead
    PFCPARAM ignoredParam;

    //measure the time in milliseconds
    start = duration_cast< milliseconds >(system_clock::now().time_since_epoch());

    int status = PFC_AutoCorrect(&im, NULL, ignoredParam, -1, NULL, false, NULL, pAiEngine, true);
    stop = duration_cast< milliseconds >(system_clock::now().time_since_epoch());
    double elapsed = (double)(stop.count() - start.count());
    if (bVerbose) {
        printf("Processing time: %f ms\n", elapsed);
    }

    if (status == APPLY_SUCCESS && bVerbose)
    {
        printf("Image processed successfully.\n");
    }

Read the Scene that was detected:

    // Scenes are uniquely identified by an integer label.
    int lastSceneLabel = 0;
    int lastSceneConfidence = 0;
    PFC_GetLastSceneProperties(pAiEngine, &lastSceneLabel, &lastSceneConfidence);
    printf("AI assigned scene '%i' with confidence '%i'\n", lastSceneLabel, lastSceneConfidence);

3. Using separate Calc and Apply calls, and determining the detected scene

This method allows more fine-grained control of the scene detection process, extracting which scene was detected, and optionally loading custom Scene Detection Presets.

Load the AI Engine, just like in the example above. Optionally, load custom Presets for the Scenes you will be detecting.

Run PFC_Calc to gather image stats and run AI Scene Detection Selection, saving the detected Scene in the PFCPROFILE for the image:

    // Analyze image and obtain image specific profile ad categorization.
    // For performance reasons CALC_ALL is kept to mean all classic corrections.
    // Scene Detection is it's own feature.
    PFCPROFILE pProfile = PFC_Calc(&im, NULL, pEngine, CALC_ALL | CALC_SCENE_DETECTION | CALC_AICOLOR, -1, NULL, NULL, bVerbose? myStatus : NULL, PFC_REJECT_MONOLITH, pAiEngine);

Read the Scene that was detected from the PFCCPROFILE:

    // After detectionn the scene id and model version can be optained through PFC_GetScene/
    // The specific meaning depends on the model loaded.
    int version = 0;
    int detectedScene = PFC_GetScene(pProfile, &version);
    printf("AI version '%i' assigned scene '%i' to the image.\n", version, detectedScene);

    // Apply scene preset for detected scene by getting the params to apply from the AI-enabled
    PFCPARAM param;

    if (detectedScene >= 0) {
        PFCPARAM sceneParam;
        if (0 == PFC_ReadScenePreset(sceneParam, pAiEngine, detectedScene)) {
            param = sceneParam;
        }
    }

    // Its name can be obtained through PFC_GetSceneDescription. This should *not* be done in a tight loop.
    if(bVerbose) {
        PFCSCENEDESCRIPTION description;
        int i = 0;
        while(PFC_GetSceneDescription(pAiEngine, i, &description)) {
            if(description.profileUUID == detectedScene) {
                printf("Scene '%i' is named '%s'.\n", detectedScene, description.name);
            }
            ++i;
        }
    }

Then, process the image with PFC_Apply:

    // Process image with user or scene parameters.
    PFCAPPLYSTATUS status = PFC_Apply(&im, pEngine, pProfile, param, bVerbose? myStatus : NULL);
    // Optional display of status.
    if (status == APPLY_SUCCESS && bVerbose)
    {
        printf("Image processed successfully.\n");
    }
    else if (status > APPLY_SUCCESS && bVerbose)
    {
        // Check return code for Noise Removal
        printf("Noise removal status %d\n", NRRETCODE(status));

        // Check return code for Perfectly Clear Core correction
        printf("Perfectly Clear correction status %d\n", CORERETCODE(status));

        // Check return code for Face Beautification
        printf("Face beautification status %d\n", FBRETCODE(status));

        // Check return code for Red Eye Removal
        printf("Red eye removal status %d\n", RERETCODE(status));
    }
    else if (status < APPLY_SUCCESS )
    {
        printf("Image processing failed with return code:  %d\n", status);
    }
